Double Soft close Damper Mechanism 80kg Sliding Door System

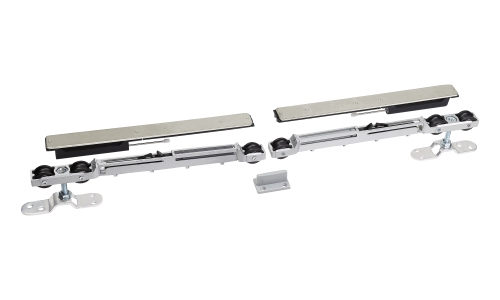

Kit comprises:
2 x Soft Close Damper
2 x Auxiliary Soft Close
2 x Connecting plates
1 x Floor Guide
1 x Wrench
1 x Anodised Aluminum Track
Configurations
Single
Double
Suitable Door Types
Aluminum Frame Doors
Frame Glass Doors
Timber Doors (Solid, Hollow and MDF)
Description:
Technical characteristics:
Model: 000008005
Application: Wooden doors up to 80 kgs each
Door weight: Up to 80kgs per door

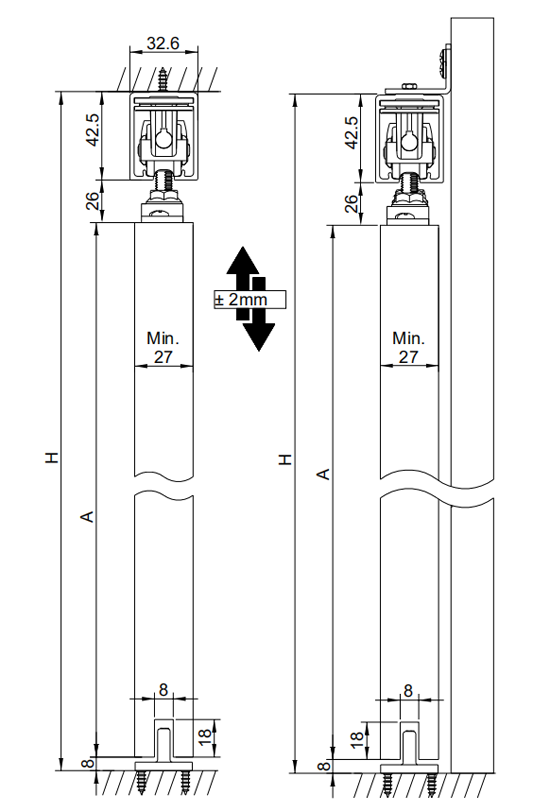

Door thickness: Minimum 27mm

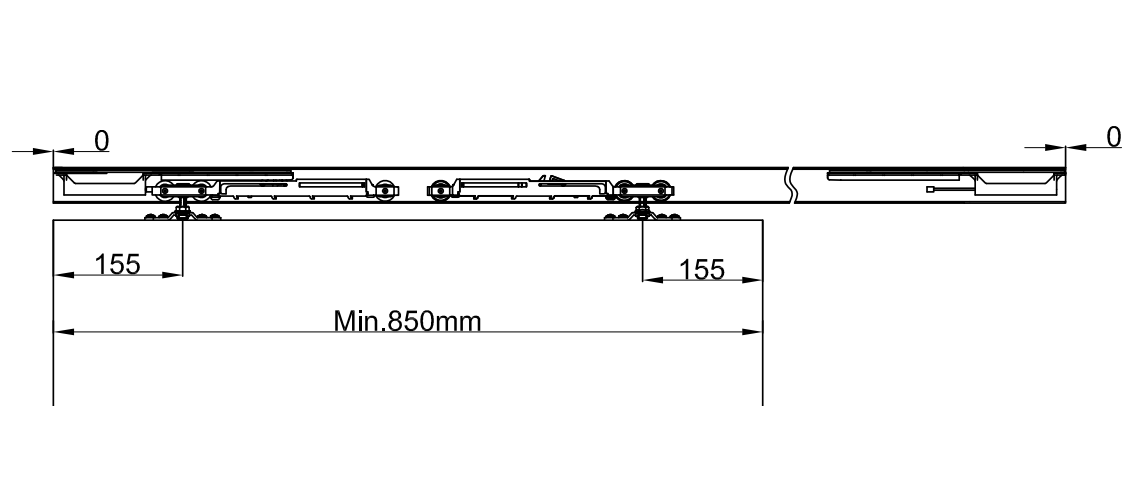

Min. Door length: 850mm
Finish: Silver
Anodised aluminum track: 32*42*2 / 30*29*1.5mm(Width*Height*Thickness)
For medium use on wooden doors. The aluminum track comes in various lengths and can be cut down easily. Excellence silent sliding rollers with friction bearing for sliding panels with 80kg. The sliding door kit comes complete with soft close damper, track, connecting plates, and floor guide etc.
